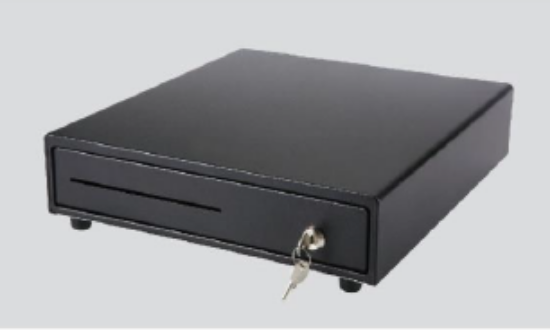

M330S Cash Drawer – Detailed Specifications

• Model: M330S

• Color: Black (Customization available)

• Physical Dimensions: 335 (W) × 368 (L) × 80 (H) mm
  (13.2 × 14.5 × 3.1 inches)

• Packing Dimensions: 395 (W) × 435 (L) × 145 (H) mm

• Net Weight: 4.6 kg

• Gross Weight: 5.1 kg

Cash & Coin Configuration

• Bill Length: 171 mm

• Bill Width: Fixed – 78 / 73 / 73 / 70 mm

• Bill & Coin Tray:

  • 4 Bill + 8 Coin or

  • 5 Bill + 4 Coin

  • One part coin tray removable

Construction & Build

• Casing: Robust all-steel construction

• Inner Drawer: Metal drawer with ABS plastic inner tray

• Bill Holders: Metal wire grippers

• Media Slot: Painted metal panel with one media slot

• Rollers: Heavy-duty plastic rollers

Locking & Security

• Key Lock: 3-position key lock (2 keys included)

• Emergency Opener: Optional

Electrical & Interface

• I/O Interface: RJ12 (Standard)

• Solenoid Voltage: 9–24V Compatible
